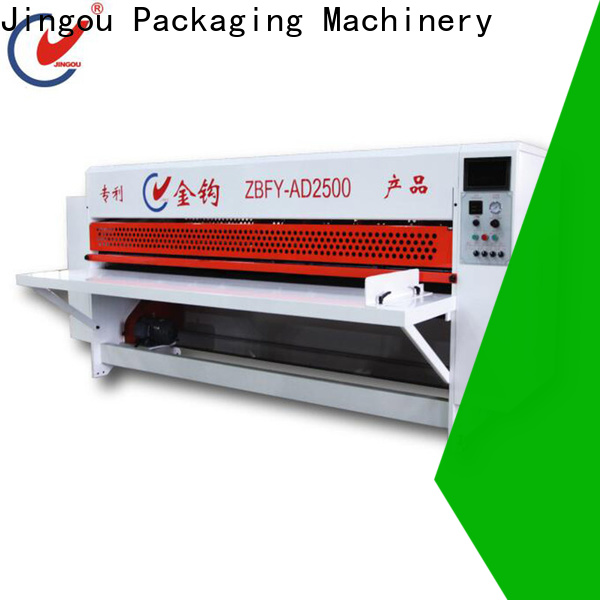

Jingou Packaging Machinery quality cardboard cutouts for wholesale for paper box-1

Function

Application: for carton & cardboard manufacturer.

Advantages: this machine is PLC+HMI control, can finish pre-pressing, slitting, scoring, trimming in one time pass. Simple operation, quick set-up, size change in seconds, greatly shorten set-up time and improve efficiency.

Operation: choose box type, input carton info, blades and scorer are ready to produce at the touch of a button. Both skillful operator and newcomer can control it well.

Productivity: hundreds of small quantity orders per day.

Set up time: 1-30 seconds.

Memory: save 300 orders

Manual feeder

Auto adjusted slitter

Auto adjusted pre-scorer and scorer

Auto/manual blade grinder Auto adjusted

pressure Jog function for fine-adjusted

User-defined function Auto counter

Slitting and scorer Precision ±0.5mm

SPECIFICATIONS

No.	Model	ZBFY-AD2500
1	Blade/scorer	4blade 6scorer	5blade 8scorer
2	Feeder	Manual
3	Pressure adjust	Auto
4	Max. speed	180m/min
5	Max. feeding width	2600mm
6	Max. slitting width	2500mm
7	Min. slitting width	190mm
8	Min. feeding length	250mm (1for1: 480mm)
9	Min. scoring width	40x140mm
10	Sheet thickness	2-7mm
11	Air pressure	0.4Mpa
12	Main motor power	4kW	5.5kW
13	Dimension(LxWxH)	1570x3450x1500mm
14	Overall net weight	2500kg	2800kg

DESCRIBE

Operation HMI for Main machine

Jingou Packaging Machinery quality cardboard cutouts for wholesale for paper box-2

Jingou Packaging Machinery quality cardboard cutouts for wholesale for paper box-3

Jingou Packaging Machinery quality cardboard cutouts for wholesale for paper box-4

If you have some special work, can use this User-defined function

Jingou Packaging Machinery quality cardboard cutouts for wholesale for paper box-5

Slitting with sun wheel, more stable, pre-pressing wheels and scorer move together.

Jingou Packaging Machinery quality cardboard cutouts for wholesale for paper box-6

Jingou Packaging Machinery quality cardboard cutouts for wholesale for paper box-7

After-sales service

● Thanks to developed internet and after-sales network, communication become more and more convenience.

● The reliability of our machines make problem solving much easier, 99% of technical problem can be solved via remote assistance.

● Whenever customer need assistance or ask questions can communicate with the sales staff online, real-time to solve the problem, we are able to provide a full spectrum of services and prompt support.
